40~49mm Series40x40x10 mm

型號:EF40101B2-10000-G99/HA40101V4-0000-C99/ME40101VX-0000-A99/MF40101V3-1Q01A-A99

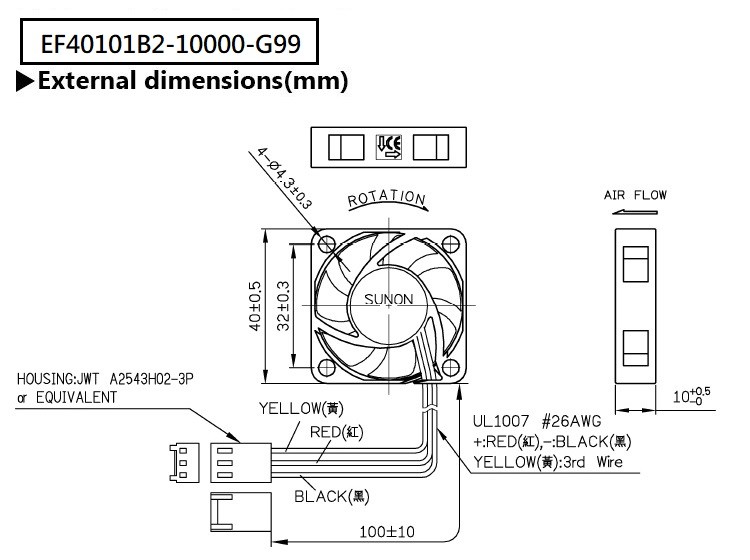

EF40101B2-10000-G99

Rated Voltage:12 VDC
Rated Current:37 mA/Max.43mA
Rated Power :0.45 WATTS/MAX.0.52 WATTS
Rated Speed:5000RPM ± 15%
Acoustic Noise:17.7 dB(A)
Air Flow:5.5 CFM

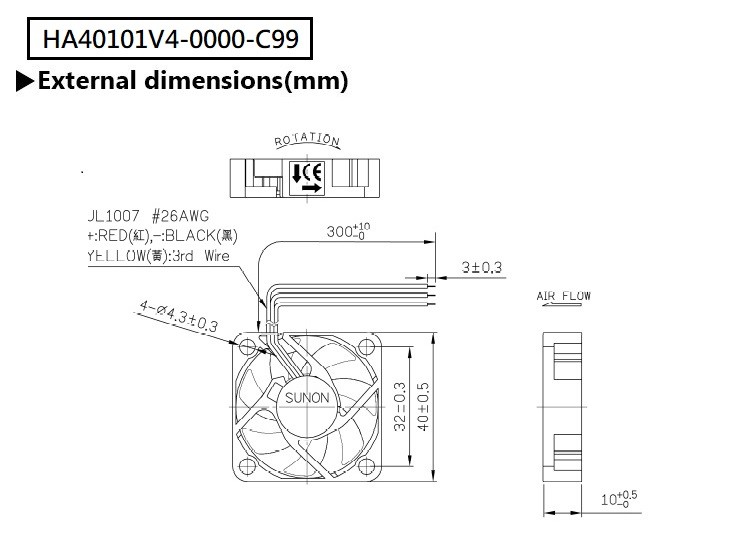

HA40101V4-0000-C99

Rated Voltage:12 VDC
Rated Current:65 mA/Max.75mA
Rated Power :0.8 WATTS/MAX.0.90 WATTS
Rated Speed:4500RPM ± 15%
Acoustic Noise:18.2 dB(A)
Air Flow:5.3 CFM

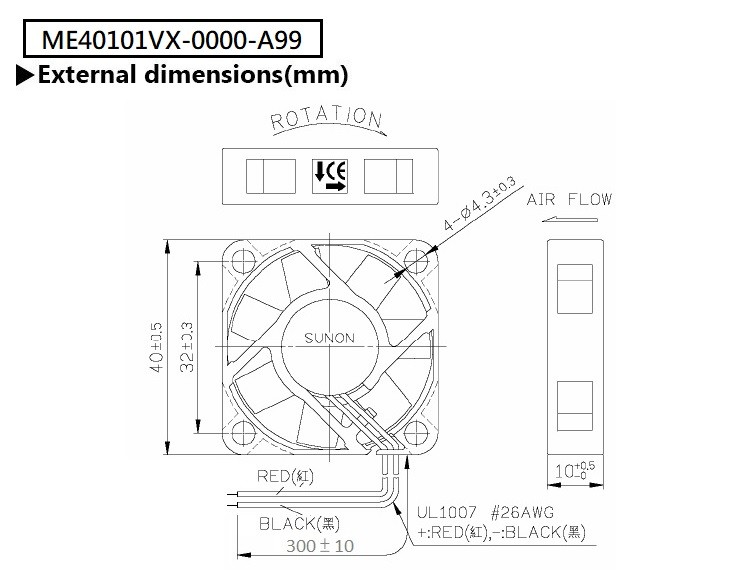

ME40101VX-0000-A99

Rated Voltage:12 VDC
Rated Current:130 mA/Max.150mA
Rated Power :1.60 WATTS/MAX.1.80 WATTS
Rated Speed:8500RPM ± 15%
Acoustic Noise:36.1 dB(A)
Air Flow:9.9 CFM

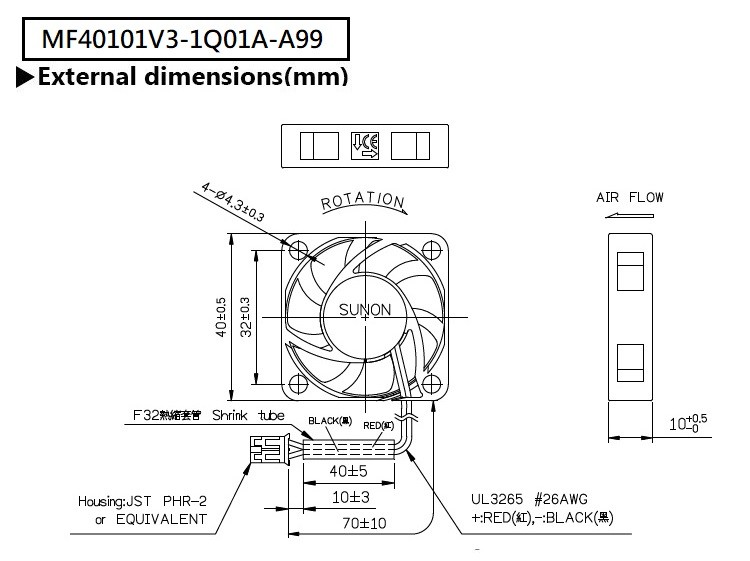

MF40101V3-1Q01A-A99

Rated Voltage:12 VDC
Rated Current:24 mA
Rated Power :0.29 WATTS
Rated Speed:3000RPM ± 15%
Acoustic Noise:6.8 dB(A)
Air Flow:3.2 CFM
