60~69mm Series60x60x25 mm

型號:PE60251B3-D000-GD9/EE60251S1-10000-C99/MF60251V2-10000-G99/PE60251B1-0000-G99

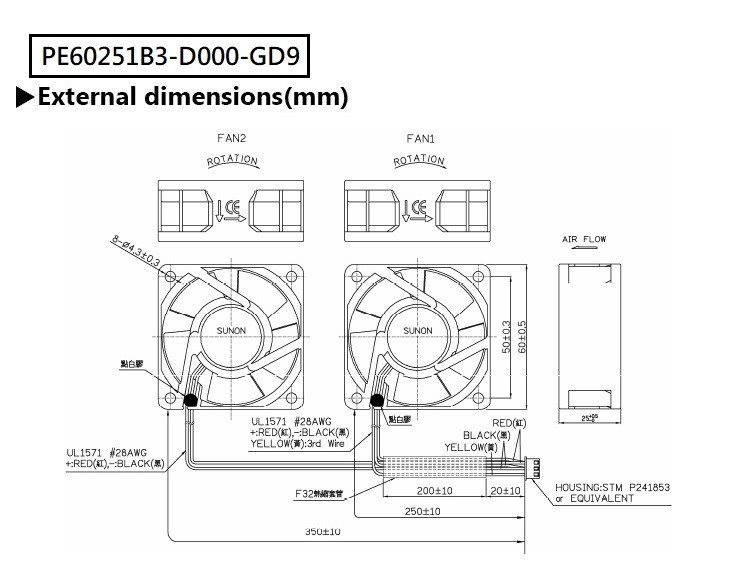

PE60251B3-D000-GD9

Rated Voltage:12 VDC
Rated Current:197 mA
Rated Power :2.37 WATTS
Rated Speed:5600RPM ± 10%
Acoustic Noise:38 dB(A)
Air Flow:29 CFM

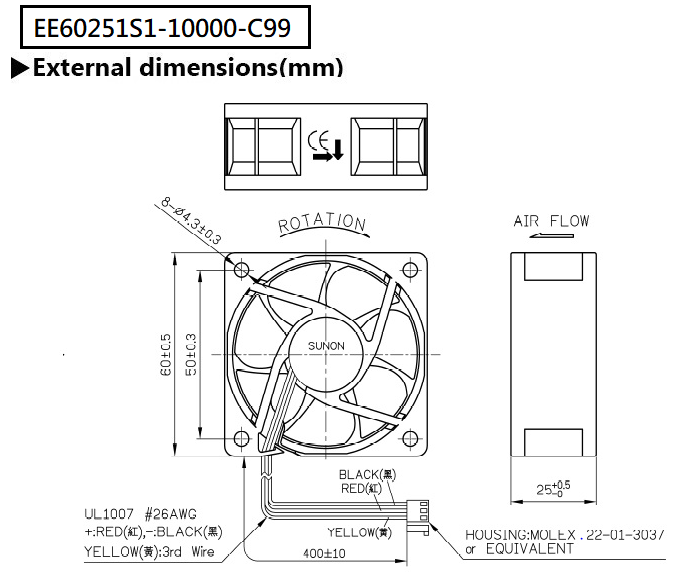

EE60251S1-10000-C99

Rated Voltage:12 VDC
Rated Current:122 mA/MAX. 141 mA
Rated Power :1.47 WATTS/MAX. 1.70 WATTS
Rated Speed:4500RPM ± 15%
Acoustic Noise:27.0 dB(A)
Air Flow:23.5 CFM

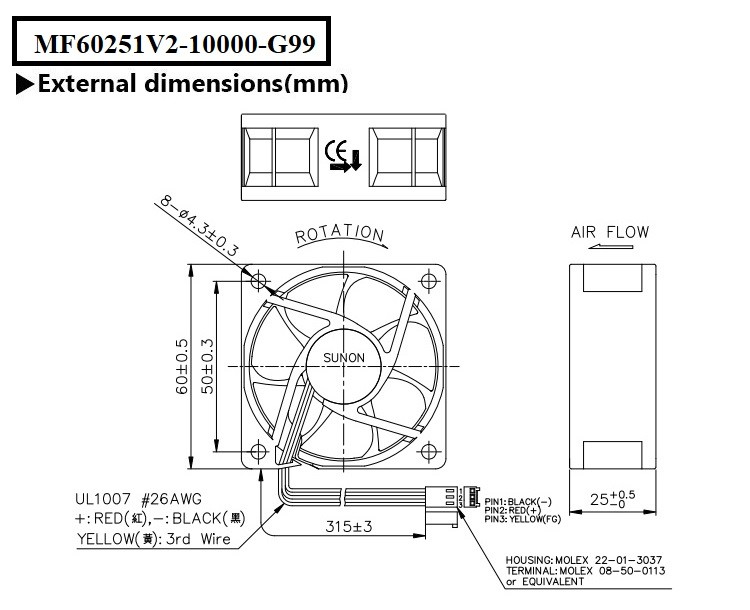

MF60251V2-10000-G99

Rated Voltage:12 VDC
Rated Current:72 mA/MAX. 83 mA
Rated Power :0.87WATTS/MAX. 1.00 WATTS
Rated Speed:3800RPM ± 15%
Acoustic Noise:22.0 dB(A)
Air Flow:19.3 CFM

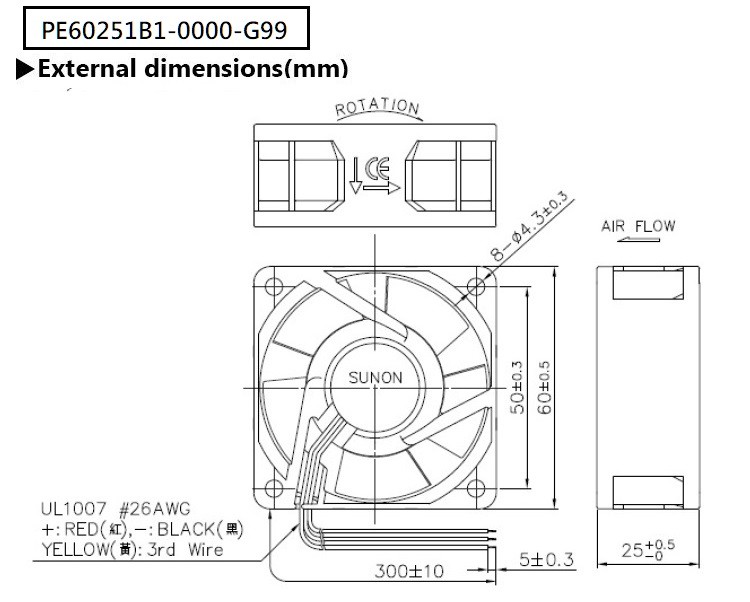

PE60251B1-0000-G99

Rated Voltage:12 VDC
Rated Current:297 mA/MAX. 342 mA
Rated Power Consumption:3.57 WATTS/MAX. 4.11 WATTS
Rated Speed:6900RPM ± 15%
Acoustic Noise:44.0 dB(A)
Air Flow:36.0 CFM

產品規格
