60~69mm Series60x60x10 mm

型號:MF60101V1-1D030-F99 / MF60101V1-1Q088-S99

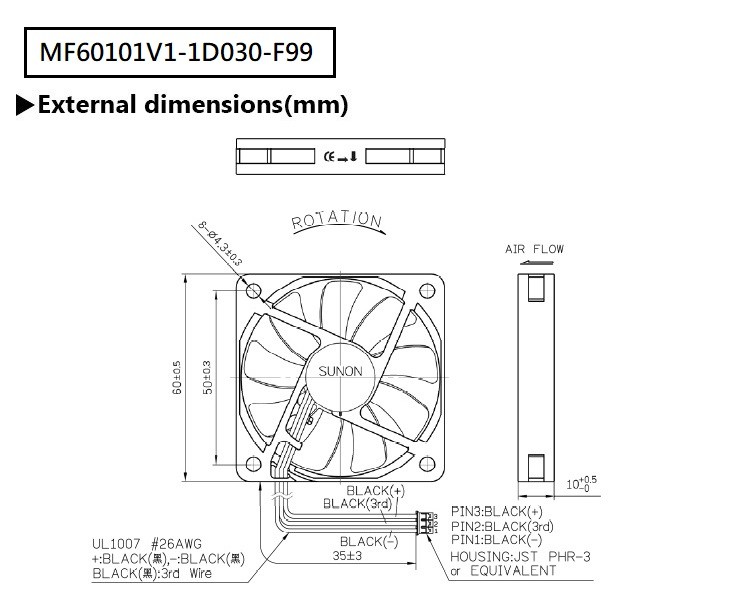

MF60101V1-1D030-F99

Rated Voltage:12 VDC
Rated Current:108 mA/Max.125 mA
Rated Power :1.30 WATTS/Max.1.50 WATTS
Rated Speed:4000RPM ± 15%
Acoustic Noise:28.5 dB(A)
Air Flow:16.3 CFM

MF60101V1-1Q088-F99

Rated Voltage:12 VDC
Rated Current:80 mA/Max.92 mA
Rated Power :0.96 WATTS/Max.1.11 WATTS
Rated Speed:4000RPM ± 500RPM
Acoustic Noise:Nominal 28.5 dB(A)/Max.32.0 dB(A)
Air Flow:Nominal 16.3 CFM/Min. 14.4 CFM



產品規格
