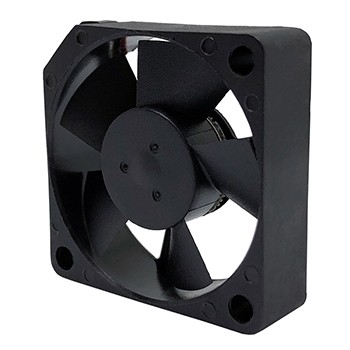

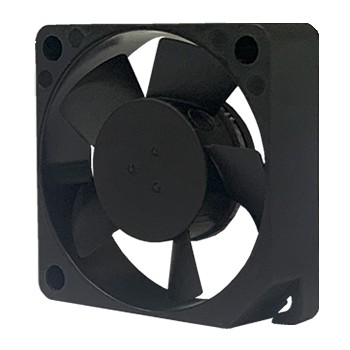

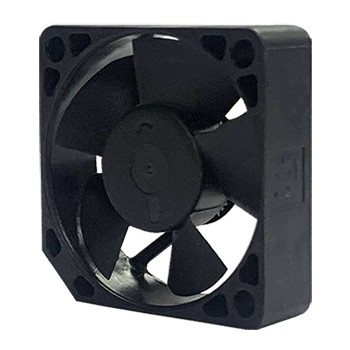

30~39mm Series35x35x10 mm

型號:EF35101S2-Q010-G99/MC35101V2-0000-G99/MF35101V2-1Q010-S99

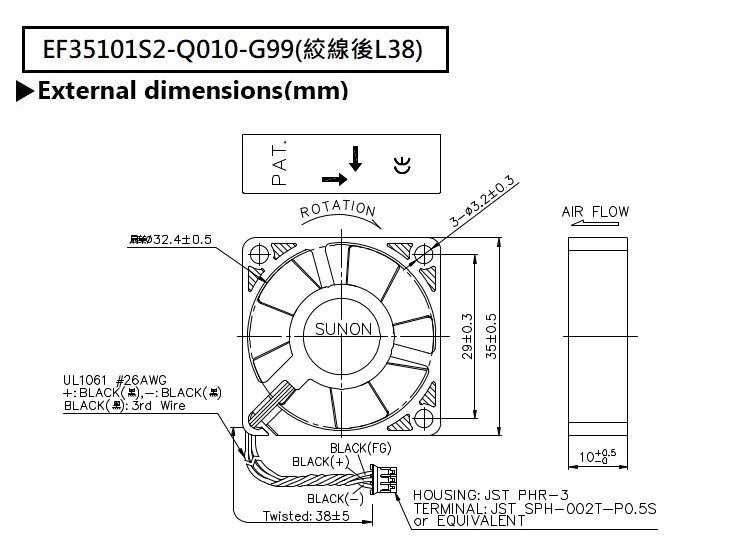

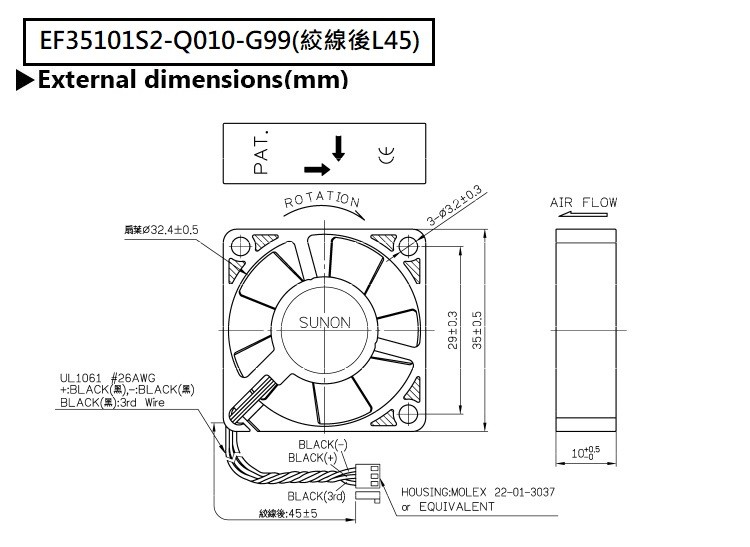

EF35101S2-Q010-G99

Rated Voltage:12 VDC
Rated Current:40 mA
Rated Power:0.48 WATTS
Rated Speed:7000RPM ± 15%
Acoustic Noise:22.6 dB(A)
Air Flow:5.1 CFM

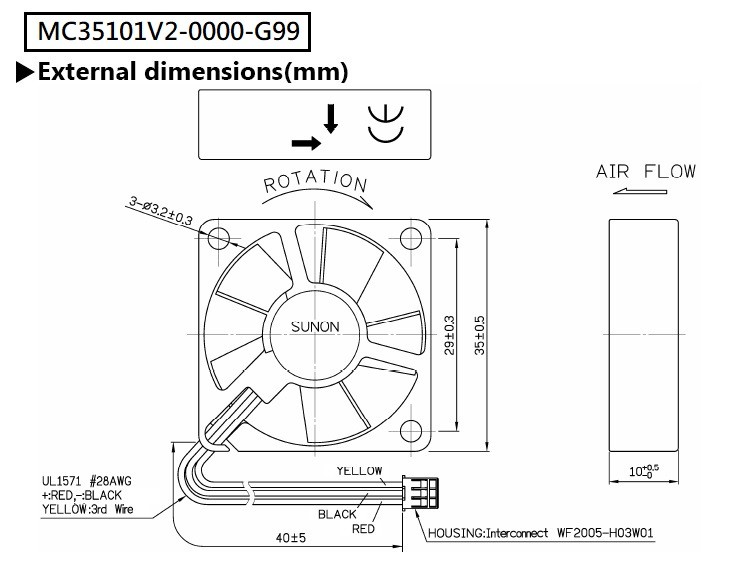

MC35101V2-0000-G99

Rated Voltage:12 VDC
Rated Current:43 mA/Max.50mA
Rated Power:0.52 WATTS/MAX.0.60WATTS
Rated Speed:7500RPM ± 25%
Acoustic Noise:22.0 dB(A)
Air Flow:6.5 CFM

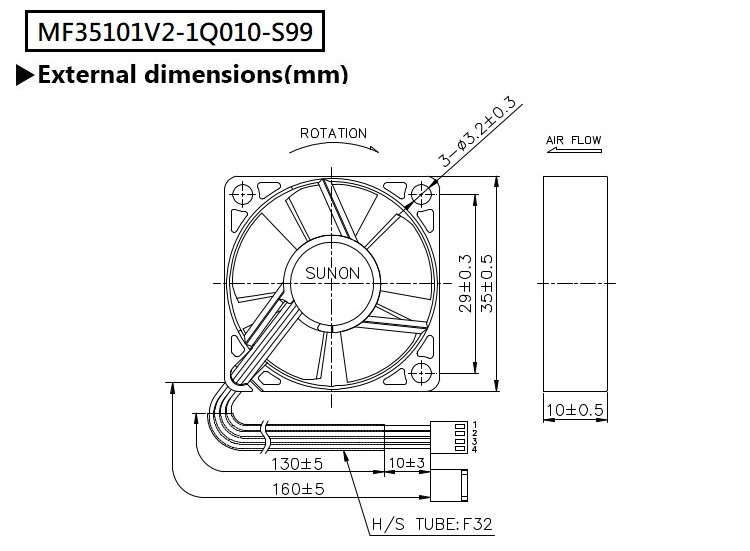

MF35101V2-1Q010-S99

Rated Voltage:12 VDC
Rated Current:45 mA / Max. 54 mA
Rated Power:0.54 WATTS / Max. 0.65 WATTS
Rated Speed:7500RPM ± 15%
Acoustic Noise:21.8 dB(A)
Air Flow:6.5 CFM

產品規格
